Find Faster. Protect Smarter. Track Without Guesswork.

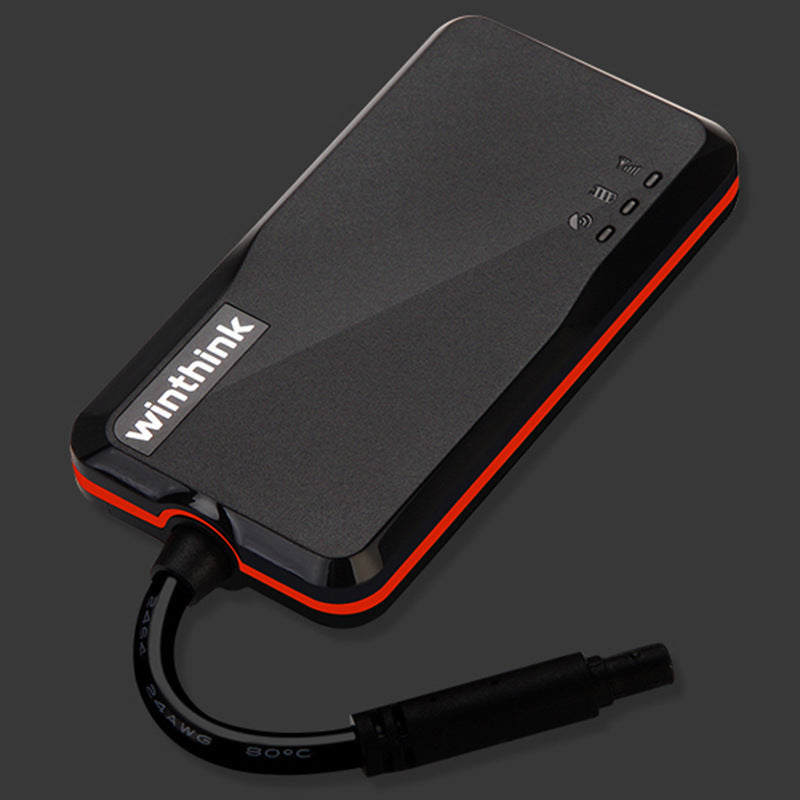

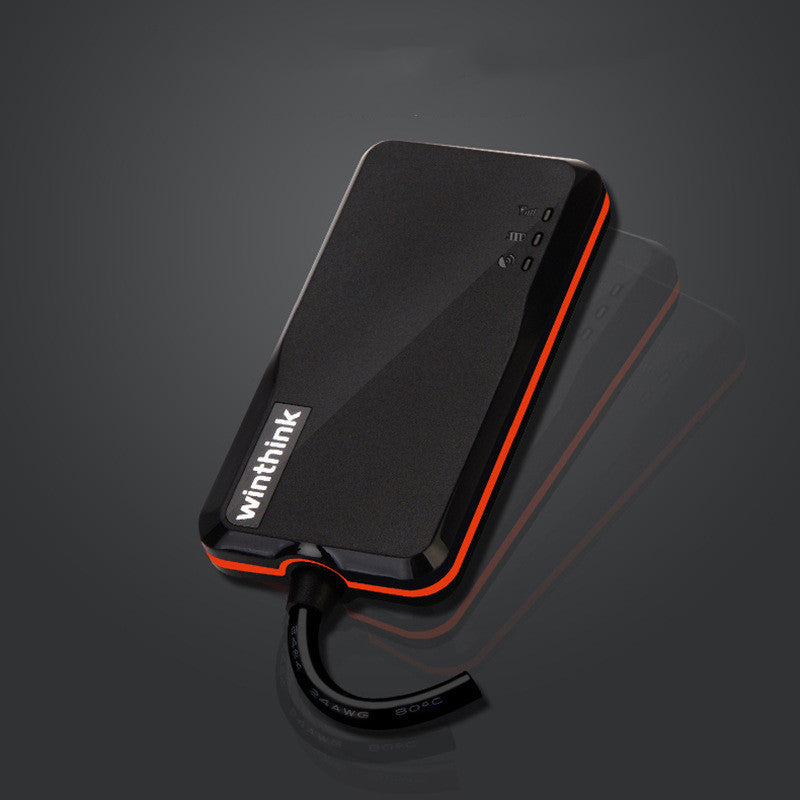

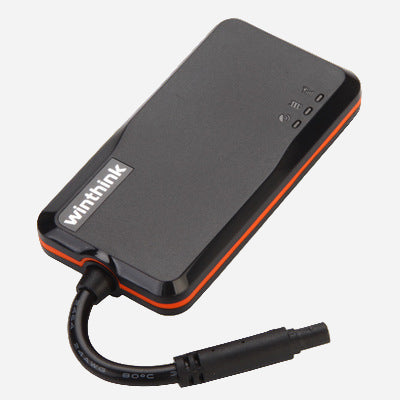

Automotive Electric Vehicle Beidou GPS Locator
Dual‑Mode Positioning (BDS/GPS)
4G Connectivity, Real‑Time Alerts
Hardwire/OBD Options, IP‑Rated
Equip cars, EVs, and fleets with a compact tracker that locks onto BeiDou and GPS satellites for more robust, all‑weather coverage. Dual‑mode positioning improves fix reliability in urban canyons and under tree cover, while assisted modes keep coordinates flowing when satellite signals are weak. With integrated 4G cellular and fallback to GSM/GPRS, location and alerts arrive in real time—geofences, overspeed, vibration/tamper, low‑battery, and ignition events—so action can happen immediately, not after the fact.
Install as a hidden hardwire for continuous power on 9–36V systems or use OBD for plug‑and‑play trips and diagnostics. Options like remote immobilization, history playback, and offline point storage support theft recovery and fleet audits. An IP‑rated shell and wide‑temp design suit EVs, scooters, bikes, and trucks across seasons.
Why It Matters:
-
Multi‑constellation (BeiDou+GPS) increases availability and accuracy for vehicles in complex environments.
-
4G + GSM fallback keeps trackers online for instant SMS/app alerts and live maps.
-
Hardwire/OBD flexibility fits EVs and mixed fleets without rewiring projects.
Chip: Eight cores
Working current: ≈22mA (12vDC)
Dimensions: 78X41 X 12mm
Material: ABS
Battery type: polymer battery
Battery life: 48 (h)

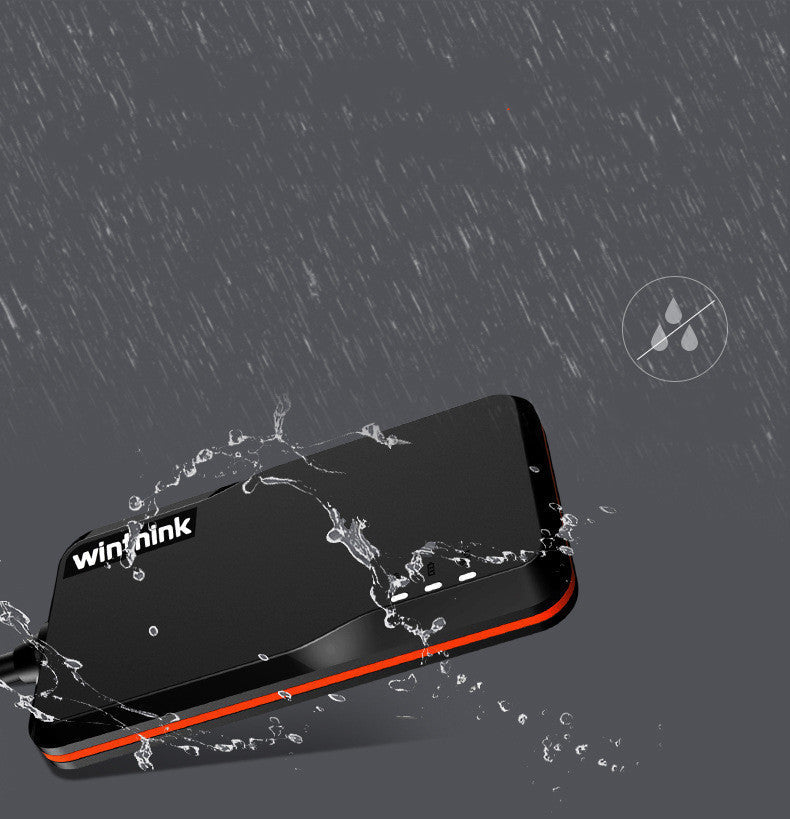

Waterproof function: life waterproof
Antenna type: built-in antenna
Chip: Eight cores
Working current: ≈22mA (12vDC)
Dimensions: 78X41 X 12mm
Working temperature: minus 20 degrees-70 degrees
Weight: 38g
Working humidity: 20%--- 80%RH
Positioning accuracy: 10m (2D RM)
GSM frequency band: 99/ 1800MHZor850/ 1900
Positioning time: cold start-38s (open sky)/warm start 32s/hot start-2s (open sky
